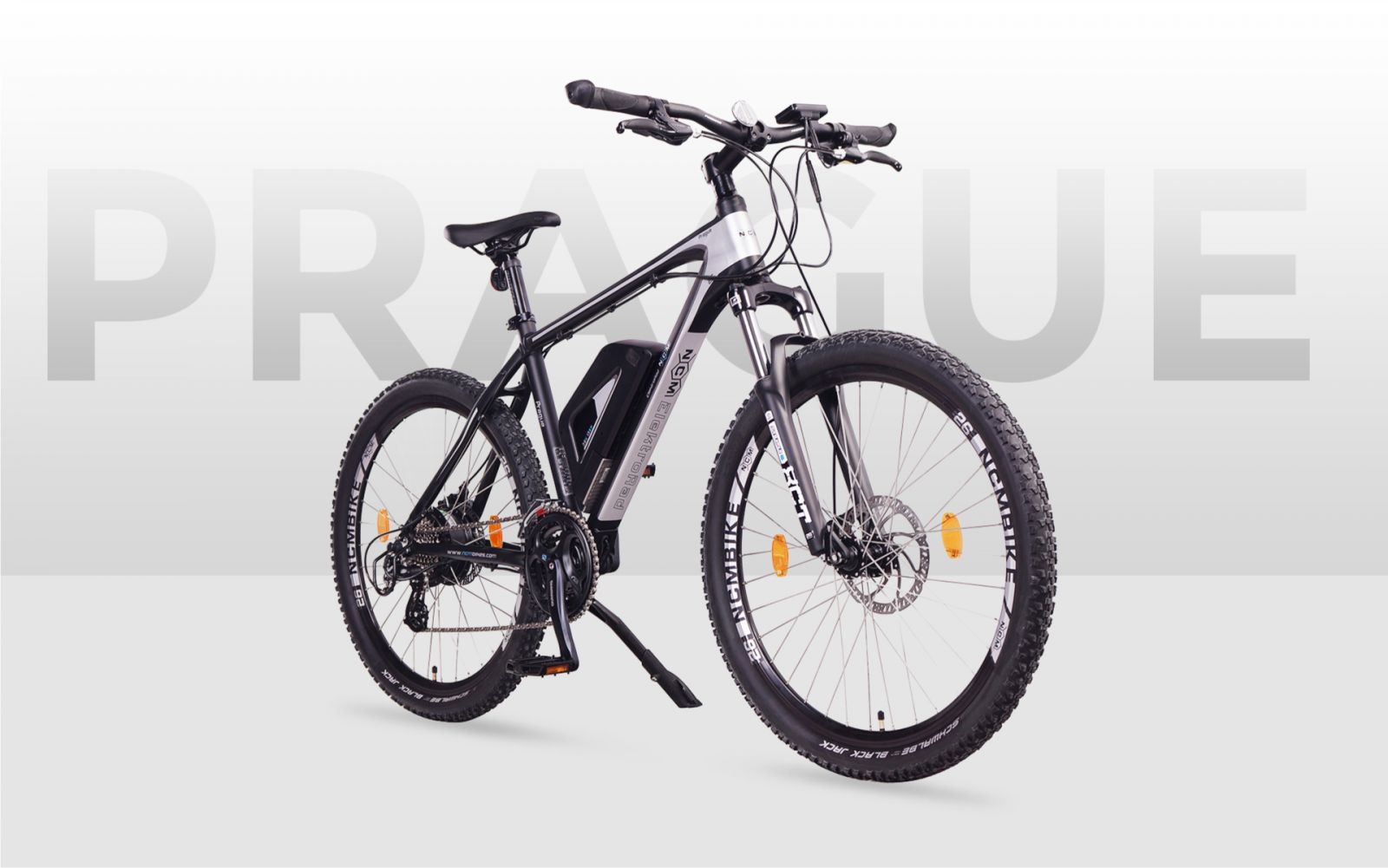

NCM Prague


Introduction

With a traditional compact frame set and bottle mount battery set up, the NCM Prague is very capable and perfect for commuters and delivery riders. This E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road. Strong dependable and reliable workhorse capable of everything you throw at it. This is the Ute of E-bikes


Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls easily accessible
  • Supplied with 36V and 60Nm to deliver a high output power
  • over 468Wh capacity for a longer distance
  • reach up to 70 km (depending on the conditions)
  • easily removable battery so you can charge it anywhere
  • A built-in USB port with 5V to charge mobile phones

Das-Kit 60Nm Motor

Das-Kit L6 Display

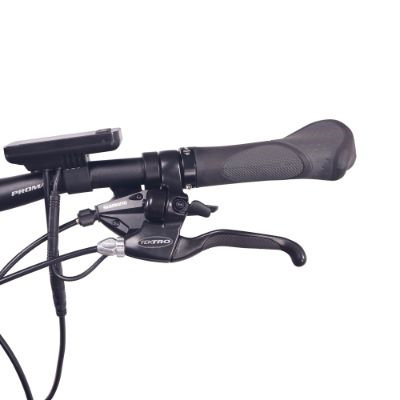

Mechanical Disc Brakes

Schwalbe Tires

Specifications

  Prague
Motor Das-Kit X15 motor, 36V, 60Nm, max speed 32 km/h
Battery DEHAWK, D5, 36V 13Ah, 468Wh with USB Port
Display Das-Kit L6, LCD Display
Charger DC362DE 36V 2A
Frame Alu. 6061, 440/480/520MM
Forks Suntour XCT 100mm
Braking System Tektro Mechanical Disc
Gear Selector Shimano Altus 7 speed
Front Derailleur Shimano Altus Triple
Rear derailleur Shimano Altus 7 speed
Saddle Velo VL-3410
Tyre Shwalbe Black Jack 26"2.1 Schwalbe Smart Sam 27.5×2.25, 29×2.25
Handle Grips Velo, VLG-1189D3 139mm
Pedal Wellgo, B087
Range Upto 70 km
Weight 25 kg

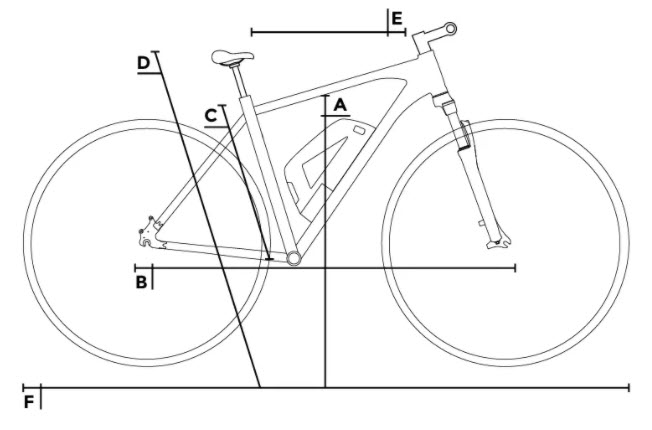

Sizing Chart

    A B C D E F
  Stand Over Height cm Wheel Base cm Frame Size cm Min-Max Seat Height cm Reach cm Overall Length cm
Prague 26 155-185 78.8  107 46 84-102  48  170
Prague 27.5 160-192 81.3  109 48 86-104 51 178
Prague 29 170-205 85 112  52 89-107  52 185


Warranty

  • 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2 year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x Prague E-bike
  • 1 x DC362DE 36v charger
  • 1 x tool kit


(P-PRAGUE)

SKU P-PRAGUE
Brand NCM
Shipping Weight 31.0000kg
Shipping Width 0.240m
Shipping Height 0.760m
Shipping Length 1.400m
Shipping Cubic 0.427500000m3
Unit Of Measure ea
