NCM Munich


Introduction

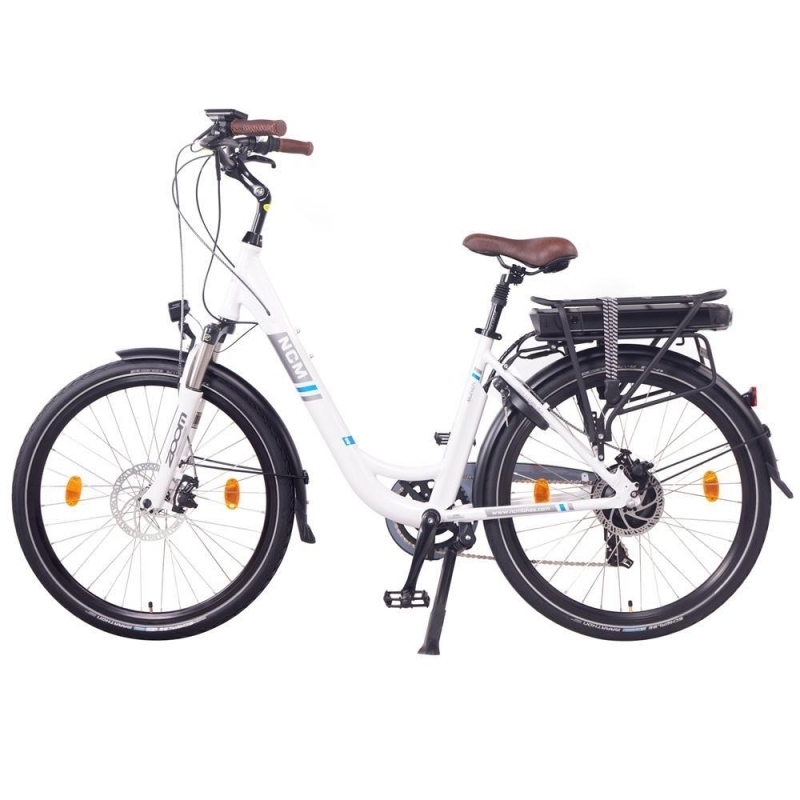

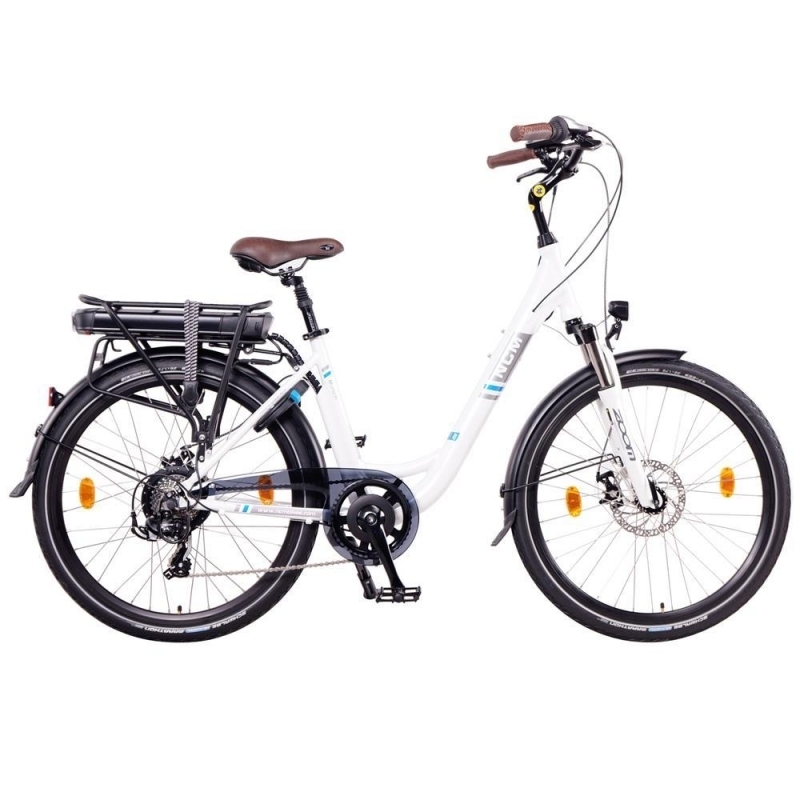

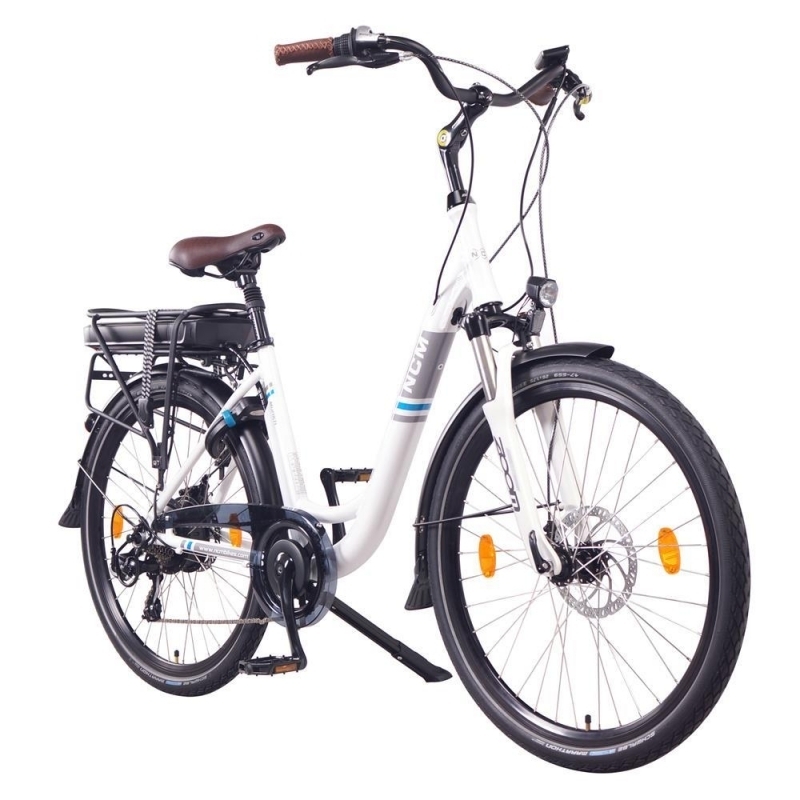

Inspired by the German City of Munich, The NCM Munich is perfect for running around the city, with a useful rack to the rear and an ultra low top tube perfect for riding in a skirt or dress. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat for improved comfort. The low top tube, makes the bike sturdy and strong yet comfortable and easy to mount.

Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls easily accessible
  • Supplied with 36V to deliver a high output power
  • Over 468Wh capacity for a longer distance
  • Reach up to 70 km (depending on terrain conditions & power level settings)

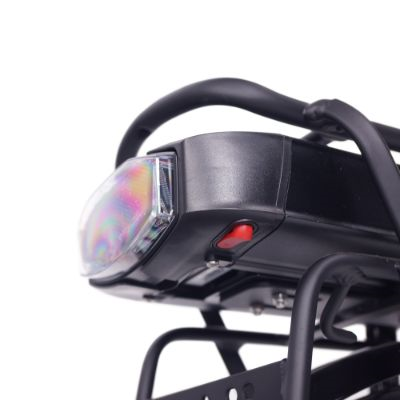

  • Easily removable battery so you can charge it anywhere
  • Equipped with Throttle and Pedal assist.

Das-Kit 60Nm Motor

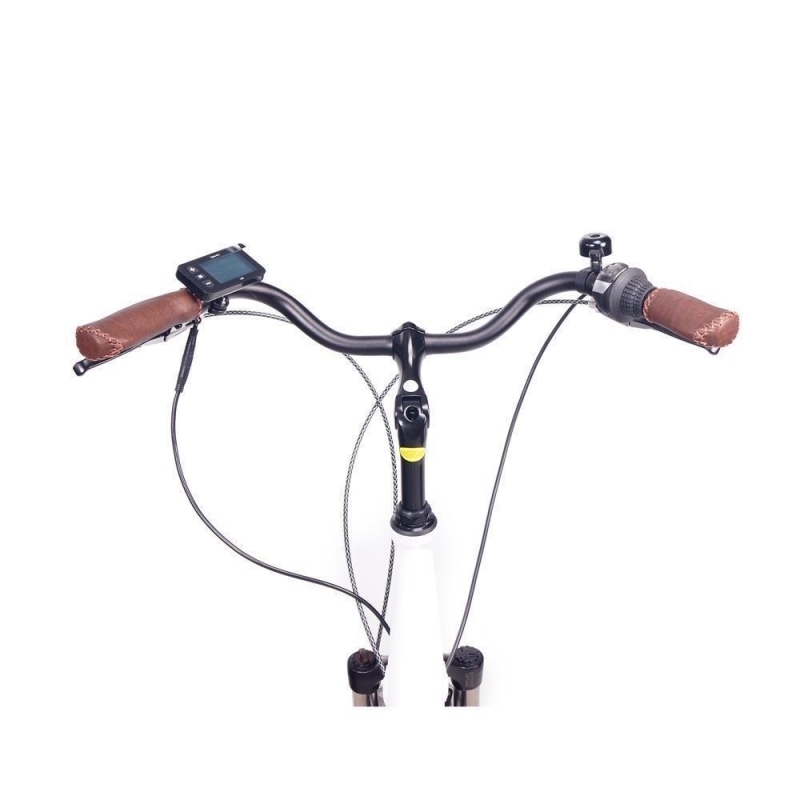

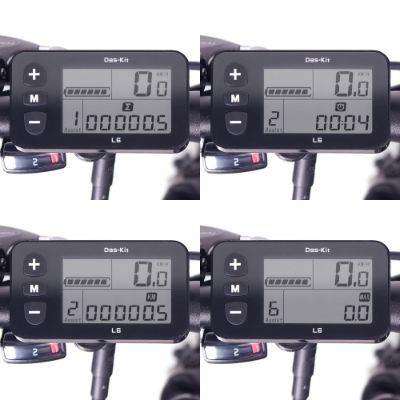

Das Kit L6 Display

36V battery

Schwalbe Tyres

Specifications

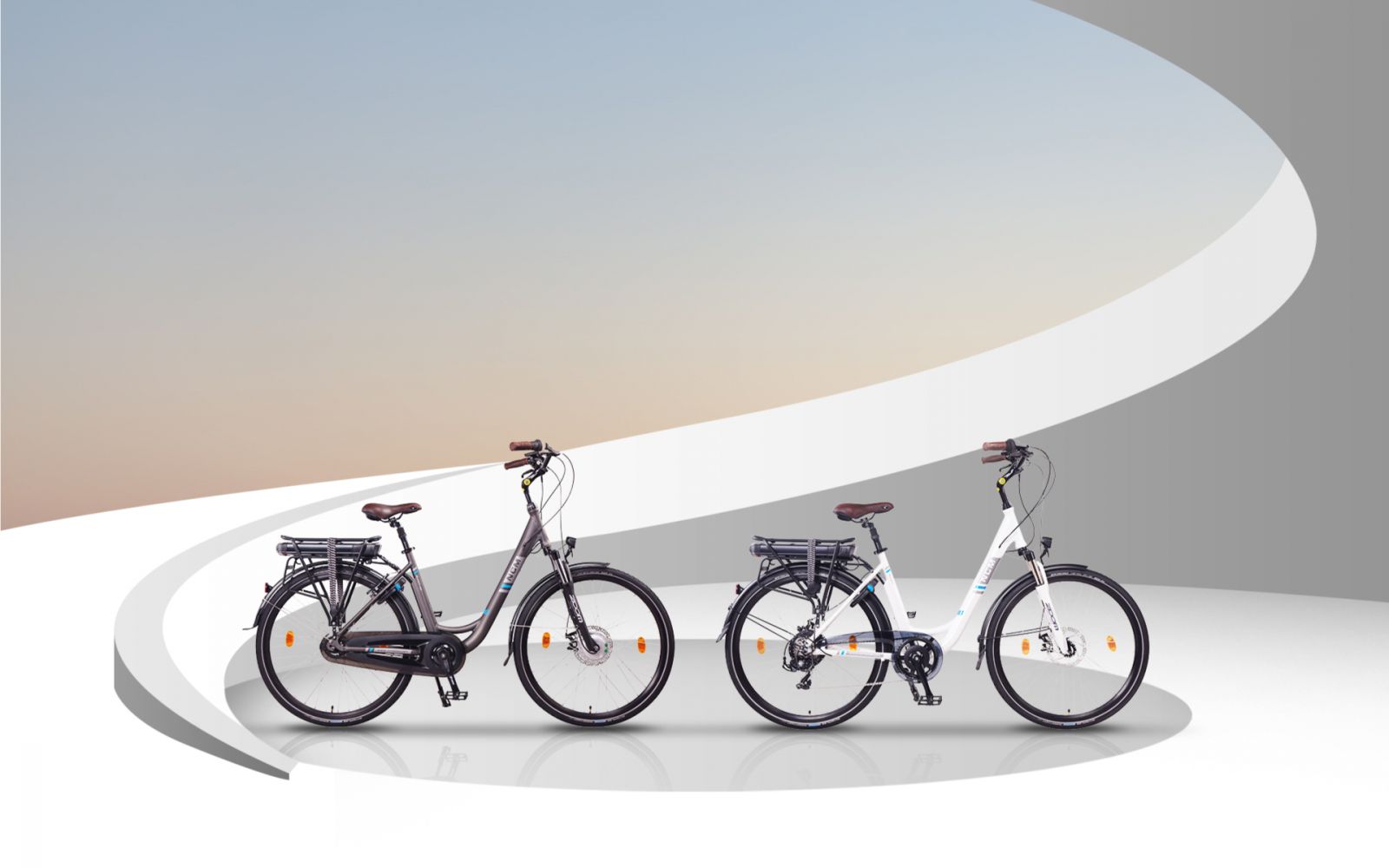

  NCM Munich NCM Munich N8C
Motor Das-Kit X15 motor, 36V, 60Nm, max speed 32 km/h Befang, 8fun, 25nm 36V Front Drive
Battery DEHAWK R3S-3613H, 468Wh, 36v 13Ah DEHAWK R3S-3613H, 468Wh, 36v 13Ah
Display Das-Kit L6, LCD Display Das-Kit L6, LCD Display

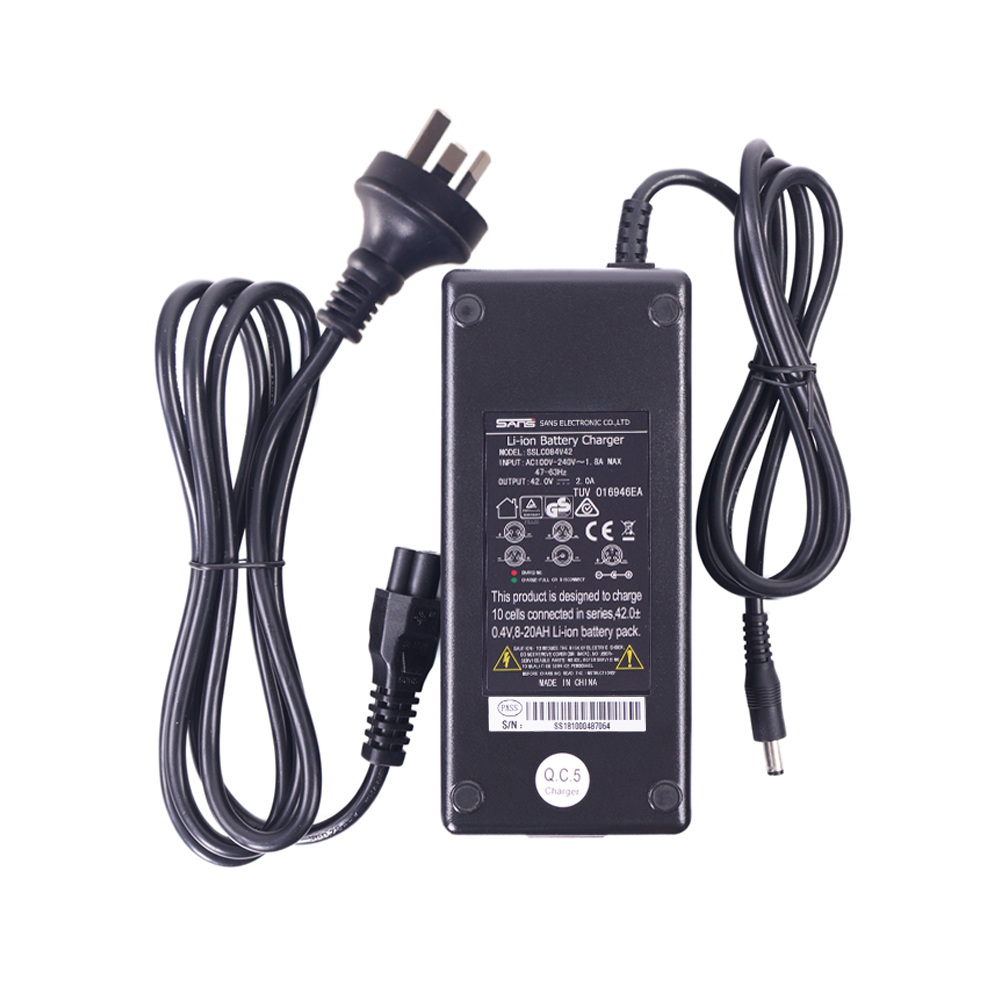

Charger SANS 36V 2A SANS 36V 2A
Frame Alu. 6061, 440/480mm Alu. 6061, 440/480mm
Forks ZOOM 187d 100mm SUNTOUR, CR8 28 60mm
Braking System Tektro Mechanical Disc

Front: Tektro Mechanical Disc

Rear: Promax, TX-117 V brake
Gear Selector Shimano Tourney, 7 speed Shimano NEXUS, 8 speed
Front Derailleur N/A N/A

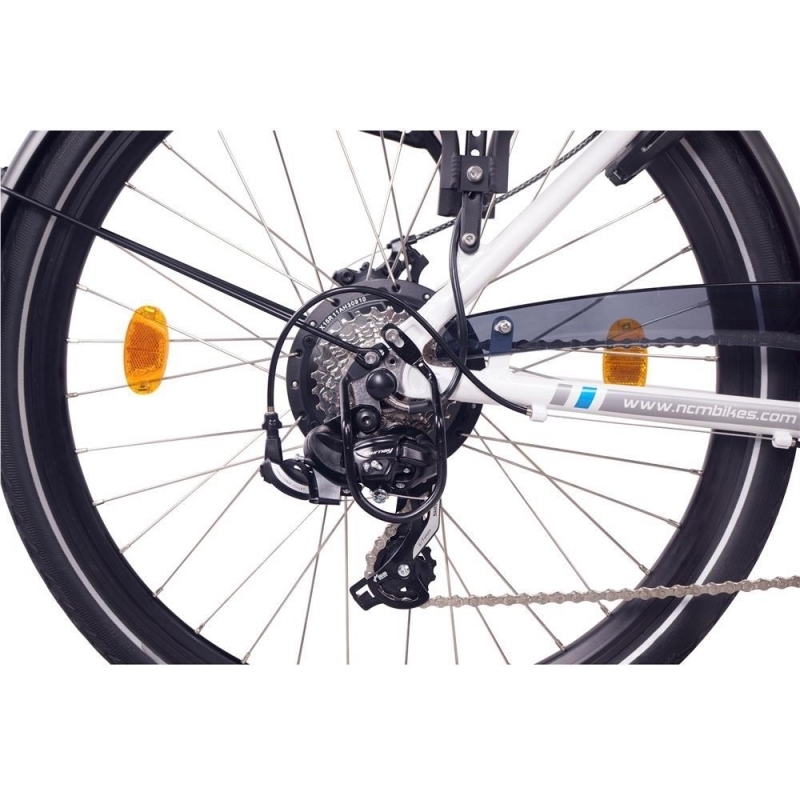

Rear derailleur Shimano Tourney, 7 speed Shimano NEXUS, 8 speed
Saddle Selle Royal, Freeway, Brown Selle Royal, Freeway, Brown
Tyre Schwalbe Marathon, 26×1.75, 28×1.5   Schwalbe Marathon, 26×1.75, 28×1.5
Handle Grips Velo, Brown Velo, Brown
Pedal Wellgo, B087 Wellgo, B087
Range Up to 70 km (depending on
terrain conditions & power level settings)		 Up to 70 km (depending on
terrain conditions & power level settings)
Weight 27 kg 27 kg

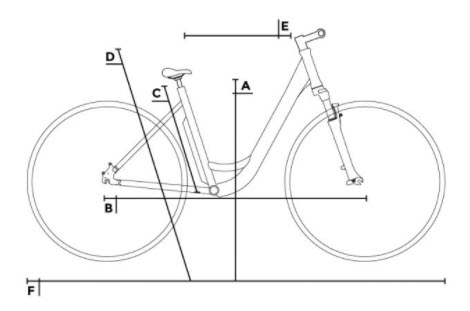

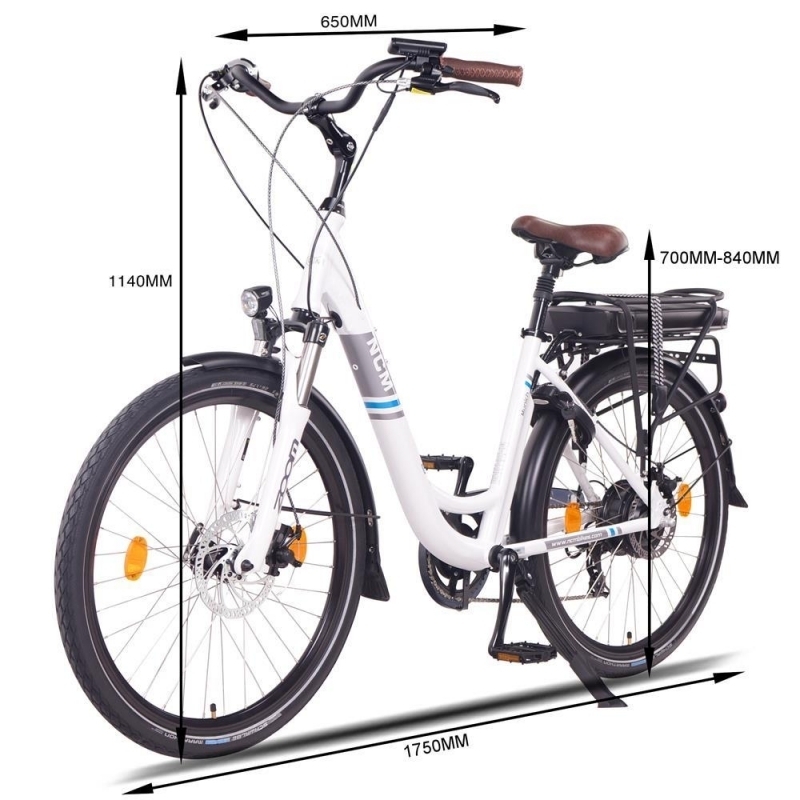

Sizing Chart

cm   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
Munich 26 158-186 86-89 106 44 87/98 56 175
Munich 28 170-198 93-104 108 48 93-104 58 181


Warranty

  • 1-year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2-year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x Munich E-bike
  • 1 x DC362DE 36v charger
  • 1 x tool kit


(P-MUNICH)

SKU P-MUNICH
Brand NCM
Shipping Weight 34.0000kg
Shipping Width 0.230m
Shipping Height 0.970m
Shipping Length 1.850m
Shipping Cubic 0.453250000m3
Unit Of Measure ea
