FOO F1

Introduction

Easy to fold with a unique, low and stable frame: The Foo F1 frame combines the upper and lower tubes to form a stable, centrally placed tube, with a strong frame and a relatively low entry. It is designed so that it can be folded without tools for quick storage and transportation. Frame, stem, pedals and saddle are all foldable for exceptional flexibility.


Key Features

  • Ergonomic bicycle Grips
  • Extra comfort with Promax seat suspension and extra wide Selle Royal saddle

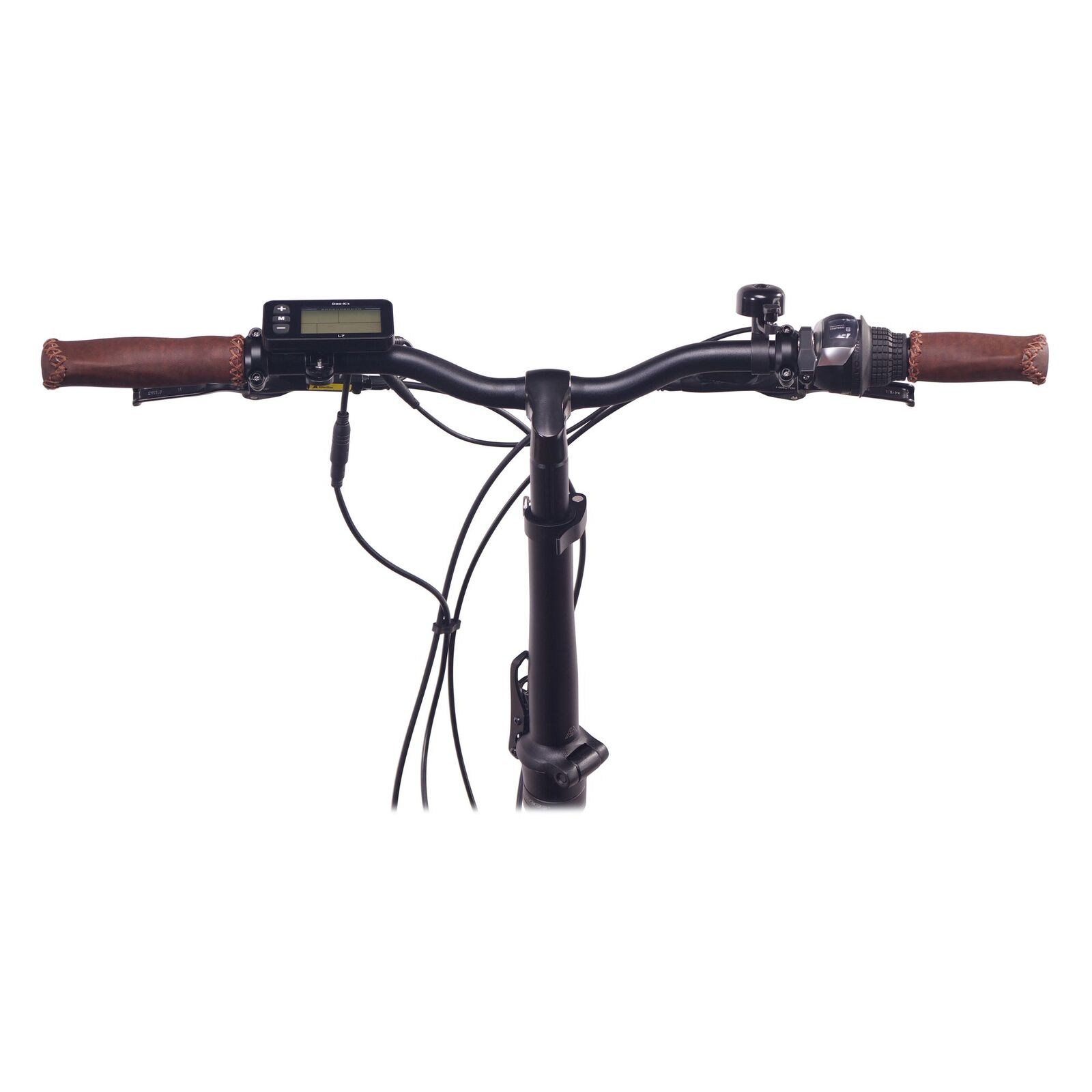

  • All important controls are easily accessible
  • Supplied with 48V to deliver a high-output power
  • Up to 500W Peak Motor Power
  • Removable and lockable 48V 624Wh extra large battery capacity
  • Up to 70 km Battery Range (depending on terrain conditions & power level settings)
  • Rear carriers with elastic straps
  • Equipped with Throttle and Pedal assist

Bafang 300W-500W Motor

Das-Kit L7 Display

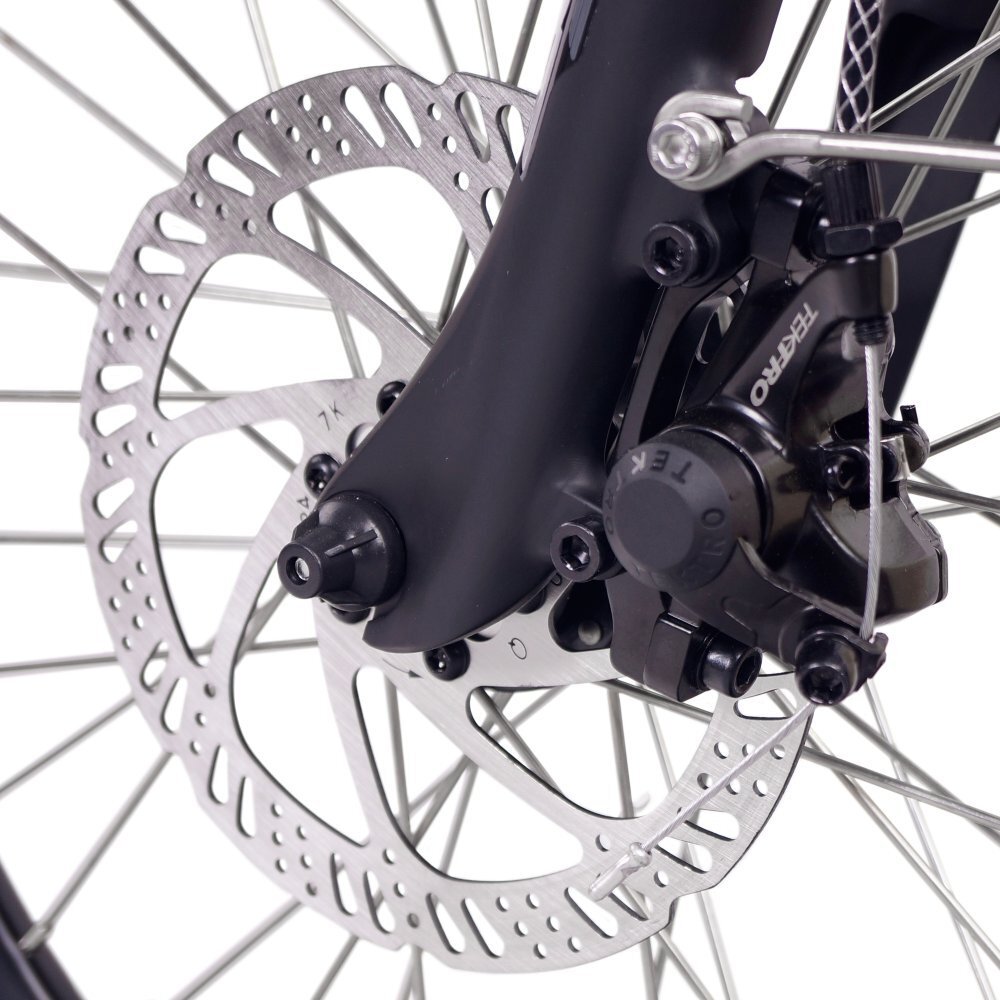

Tektro Disc Brakes

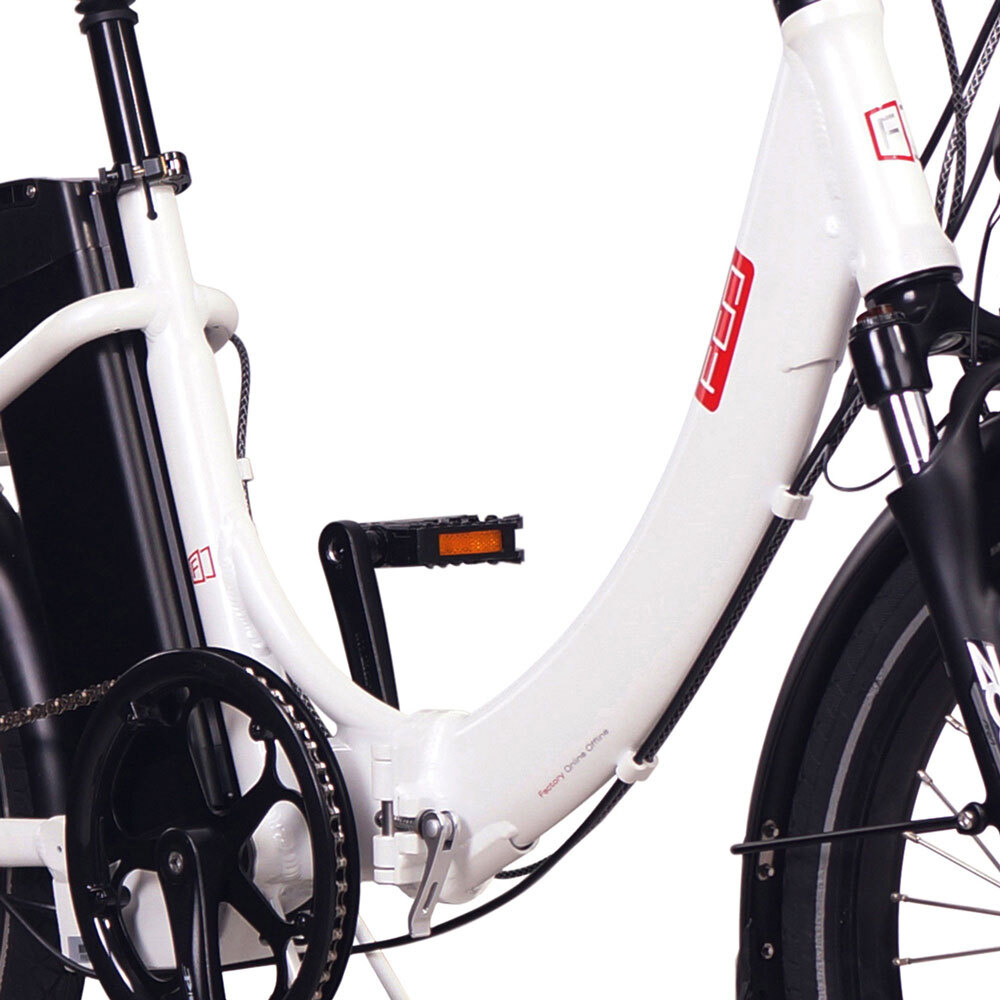

Folding Mechanism

Specifications

  FOO F1 FOO F1 PLUS

Motor

Bafang RX2, 48V, 300W,
500W Peak Power, max speed 32 km/h
Bafang, 48V, 300W,
500W Peak Power, max speed 32 km/h

Battery

Das-Kit, B1U-4813H, 48V 13 AH, 624WH Das-Kit, B1U-4816P, 48V 16AH, 768WH

Display

Das-Kit L7 Advanced, LCD Display Das-Kit L7 Advanced, LCD Display

Charger

Das-Kit, 48V 2A Das-Kit, 48V 3A

Frame

Alu.6061, 20" Alu.6061, 20"

Forks

CH190-20 RST, CRAVE

Braking System

Tektro, MD-M280, Mechanical Disc Tektro, HD-E350, Hydraulic Disc Brakes

Gear Selector

7 speed 8 speed

Front Derailleur

/ /

Rear derailleur

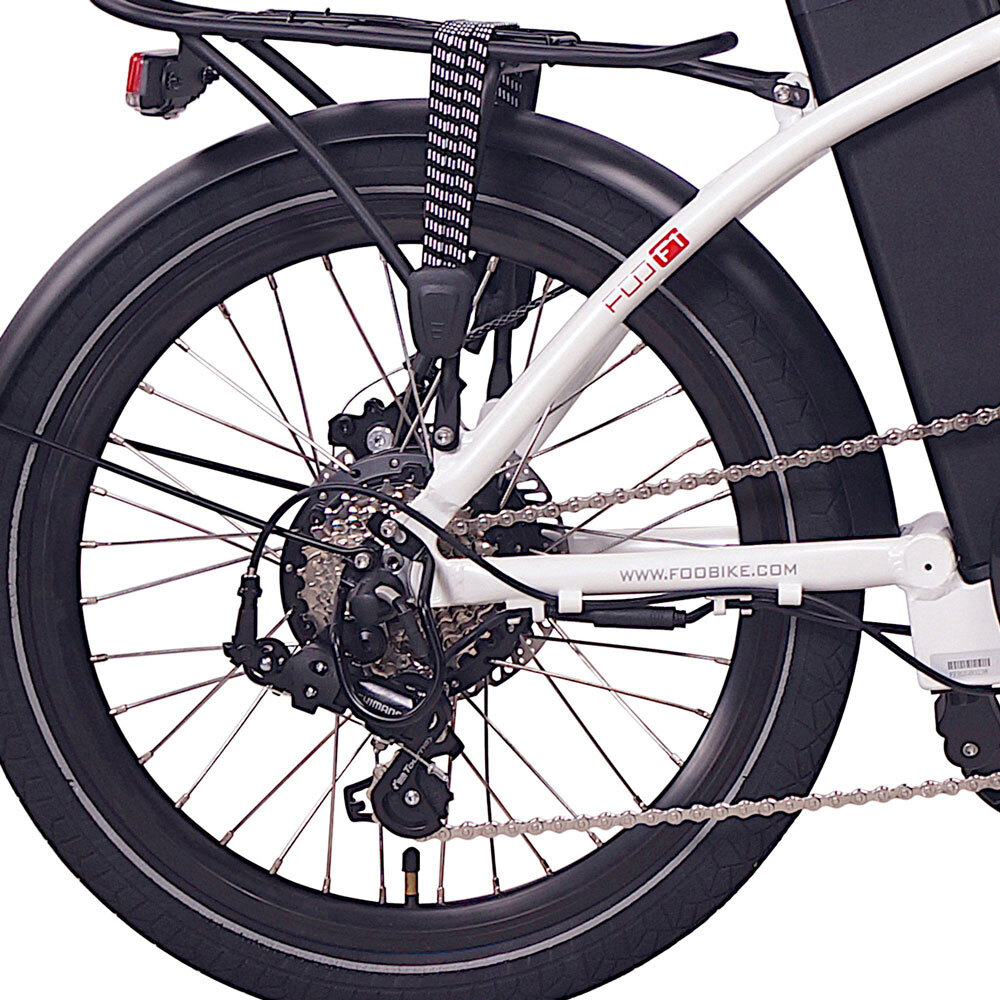

Shimano, Tourney, RD-FT35, 7-speed, 14-28T Shimano, Acera, RD-M360, 8 speed

Saddle

Selle Royal, JUSTEK, Brown  Selle Royal, JUSTEK, Brown

Tyre

CST, C1381, 20 x 1.95" CST, C1381, 20 x 1.95"

Handle Grips

Selle Royal, Brown Selle Royal, Brown

Pedal

Wellgo, Black Wellgo, Black

Range

Up to 70 km (depending on
terrain conditions & power level settings)
Up to 90 km (depending on
terrain conditions & power level settings)

Weight

23 kg 24 kg


Sizing Chart

Cm   A B C D E
  Overall Length Reach Frame Height Wheel Base Min/Max Seat Height
FOO F1 165-188 188 43 46 114  90/111


Warranty

  • 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2 year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About FOO

At FOO, we’ve taken the spirit of American motorcycles and put it into the heart of our fat tire electric bikes. Our goal is freedom across all terrains—city, sand, trail, snow. We’ve engineered strong frames and powerful drive systems and motors to open up the city and the country to your imagination. Give your attitude an extra charge.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x FOO F1
  • 1 x 48V charger
  • 1 x tool kit


(P-FOO)

SKU P-FOO
Brand FOO
Shipping Weight 40.0000kg
Shipping Width 0.500m
Shipping Height 0.690m
Shipping Length 1.010m
Shipping Cubic 0.348450000m3
