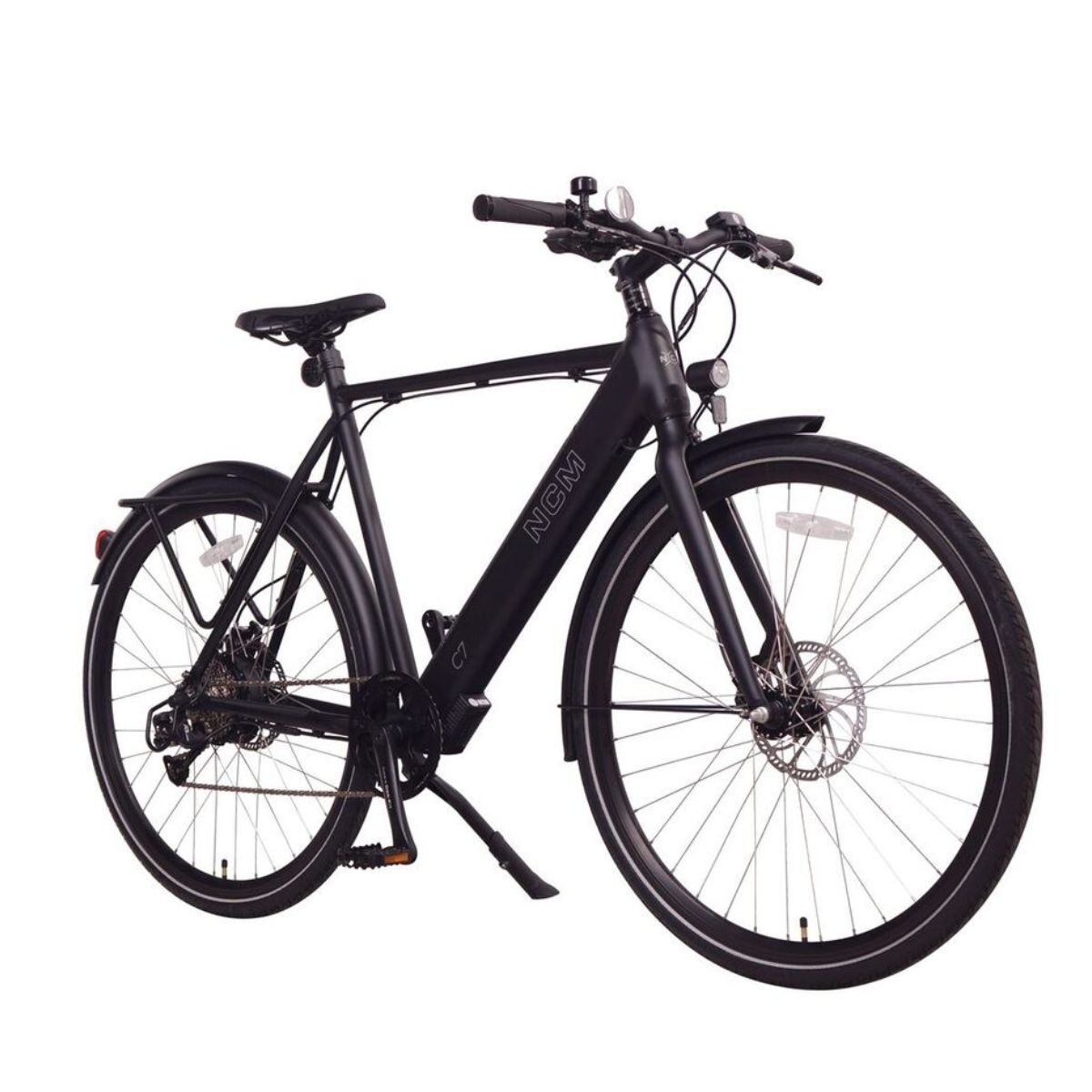

NCM C7


Introduction

Minimal Design, Maximal Performance. The NCM C7 is fully equipped E-bike for city commutes. Whether you are trying to get to work on time, while being sweat free, or need to rush to your favourite place in style, the all new NCM C7 lets you cover your daily journeys with ease. This E-bike is designed with a tough aluminium frame, and a strong rigid handlebar and saddle for improved ergonomics and performance. The high top tube, makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road.


Key Features

  • Ergonomic bicycle Grips
  • All important controls are easily accessible
  • Up to 350W Peak Motor Power.
  • Das-Kit rear-drive motor with intelligent torque sensor technology
  • Supplied with 36V 504Wh to deliver a high-output power
  • Removable and lockable 36V 504Wh extra large battery capacity
  • Up to 120 km Battery Range (depending on terrain conditions & power level settings)
  • Rear carriers integrated into the frame for a stylish pannier bag
  • CST, C-1953, 700*38c, Black tires

Intelligent Drive System

Removable Battery

Hydraulic Brakes

Custom-Made Rear Carrier

Specifications

  NCM C7 Medium                          NCM C7 Large

Motor

 Das kit, X2, 36V 300W,
350W Peak Power, Max Speed 32km/h 		 Das kit, X2, 36V 300W,
350W Peak Power, Max Speed 32km/h

Battery

 Das-Kit, I6s-3614, 504WH Das-Kit, I6s-3614, 504WH

Display

 Das-kit E2 Advanced Display Das-kit E2 Advanced Display

Charger

 Das-Kit, DC363, 36V2A Das-Kit, DC363, 36V2A

Frame

 Alu. 6061, 520MM Alu. 6061, 580MM

Forks

 ZF, 5058-01, 27.5'', rigid fork, PM ZF, 5058-01, 27.5'', rigid fork, PM

Braking System

 Gemma Hydraulic Disc Brake GA-900 Gemma Hydraulic Disc Brake GA-900

Gear Selector

 LT-8 Speed, BK LT-8 Speed, BK

Rear derailleur

 LT-8 Speed, BK LT-8 Speed, BK

Saddle

 Selle Royal A236URN Selle Royal A236URN

Tyre

 CST, C-1953, 700*38c, Black CST, C-1953, 700*38c, Black

Handle Grips

 VELO, VLG-776AD3 Black VELO, VLG-776AD3 Black

Pedal

 Wellgo, C280DU Wellgo, C280DU

Range

 Up to 120 km (depending on
terrain conditions & power level settings)		 Up to 120 km (depending on
terrain conditions & power level settings)

Weight

  22 kg  23 kg



Sizing Chart

Cm   A B C D E
  Stand Over Height Wheel Base Frame Height Min/Max Seat Height Reach
C7- Medium 160-180 80 106 52 89/108  56
C7 - Large 165-185 83 109 58 98/117 59


Warranty

  • 1 year warranty on all electronic parts (including battery, motor, controller, display, lights)
  • 2 year warranty on the bike frame
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but maybe replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x NCM C7

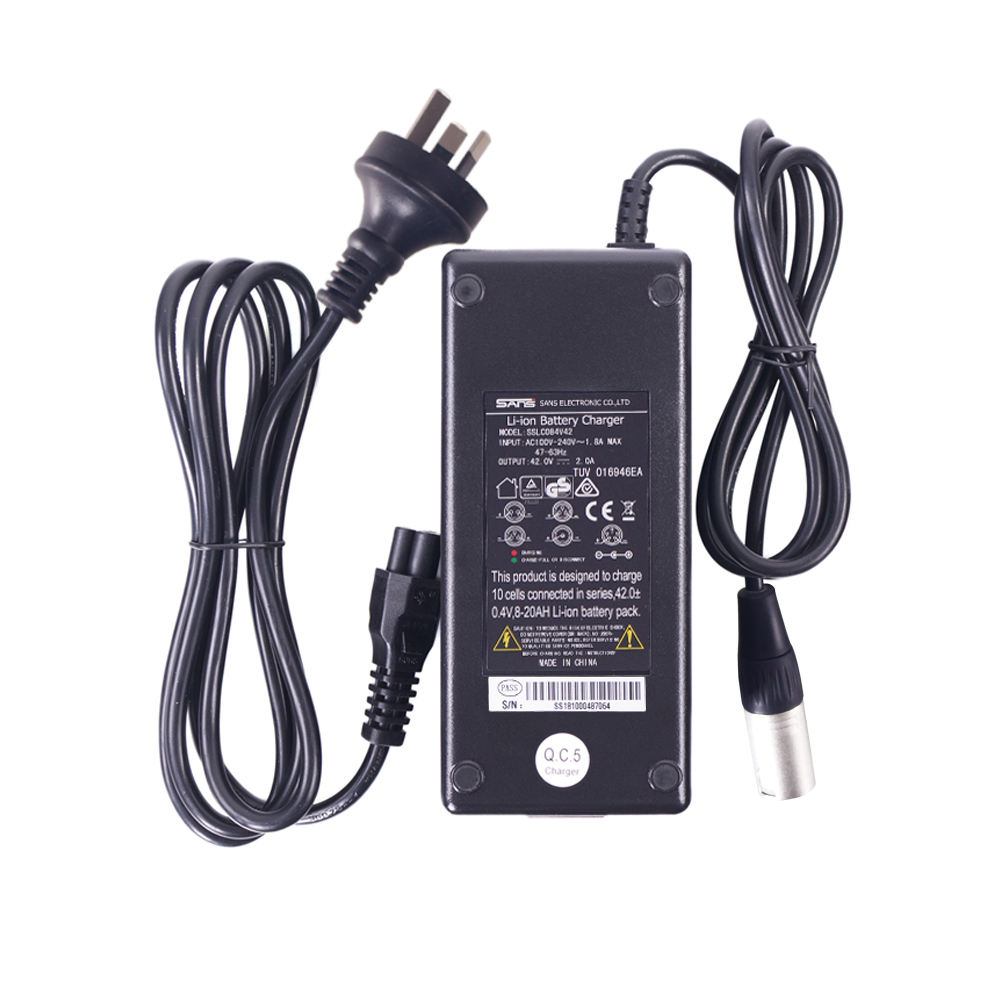

  • 1 x 36V charger
  • 1 x tool kit


(P-C7)

SKU P-C7
Brand NCM
Shipping Weight 28.0000kg
Shipping Width 0.260m
Shipping Height 0.740m
Shipping Length 1.400m
Shipping Cubic 0.269360000m3
