NCM T3


Introduction

Compared to the old NCM Venice, the new NCM T3 is built with a reinforced integrated battery. Inspired by the Romance of The great Italian City, The NCM T3 is both stylish and very practical. Perfect for running around the city, with a useful rack to the rear for extra storage. This E-bike is designed with a tough aluminium frame, and an adjustable handlebar/stem setup, with a sprung seat for improved comfort.

Key Features

  • Ergonomic bicycle Grips
  • Comfortable sitting posture
  • All important controls are easily accessible
  • Supplied with 48V to deliver a high-output power
  • Up to 500W Peak Motor Power
  • Over 576Wh capacity for a longer distance
  • Up to 110 km Battery Range (depending on the conditions)
  • Inbuilt Rear Wheel Lock
  • Integrated battery for high performance and better aesthetic
  • Easily removable battery so you can charge it anywhere

Das kit 250W-500W Motor

Hydraulic Disc Brakes

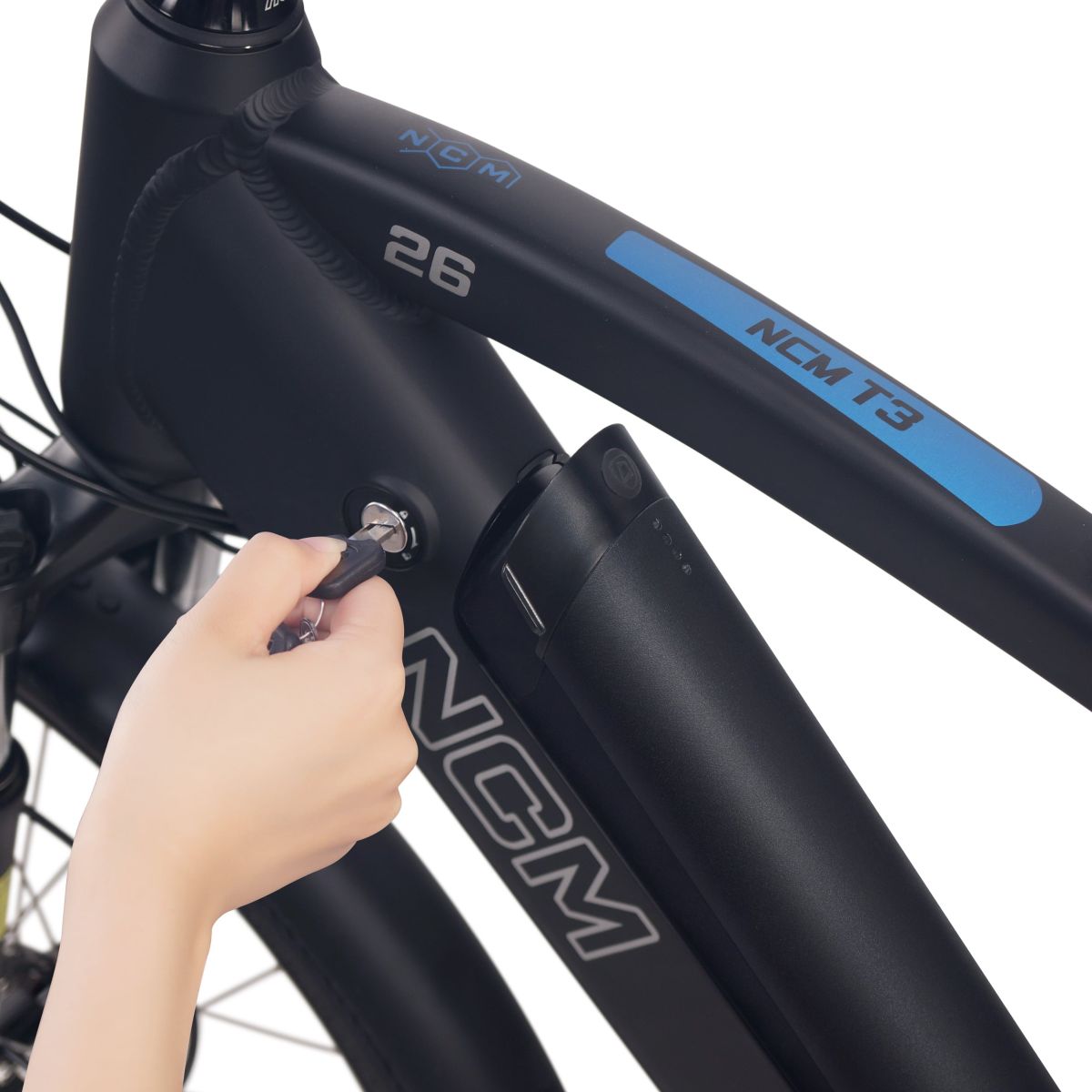

48V Integrated Battery

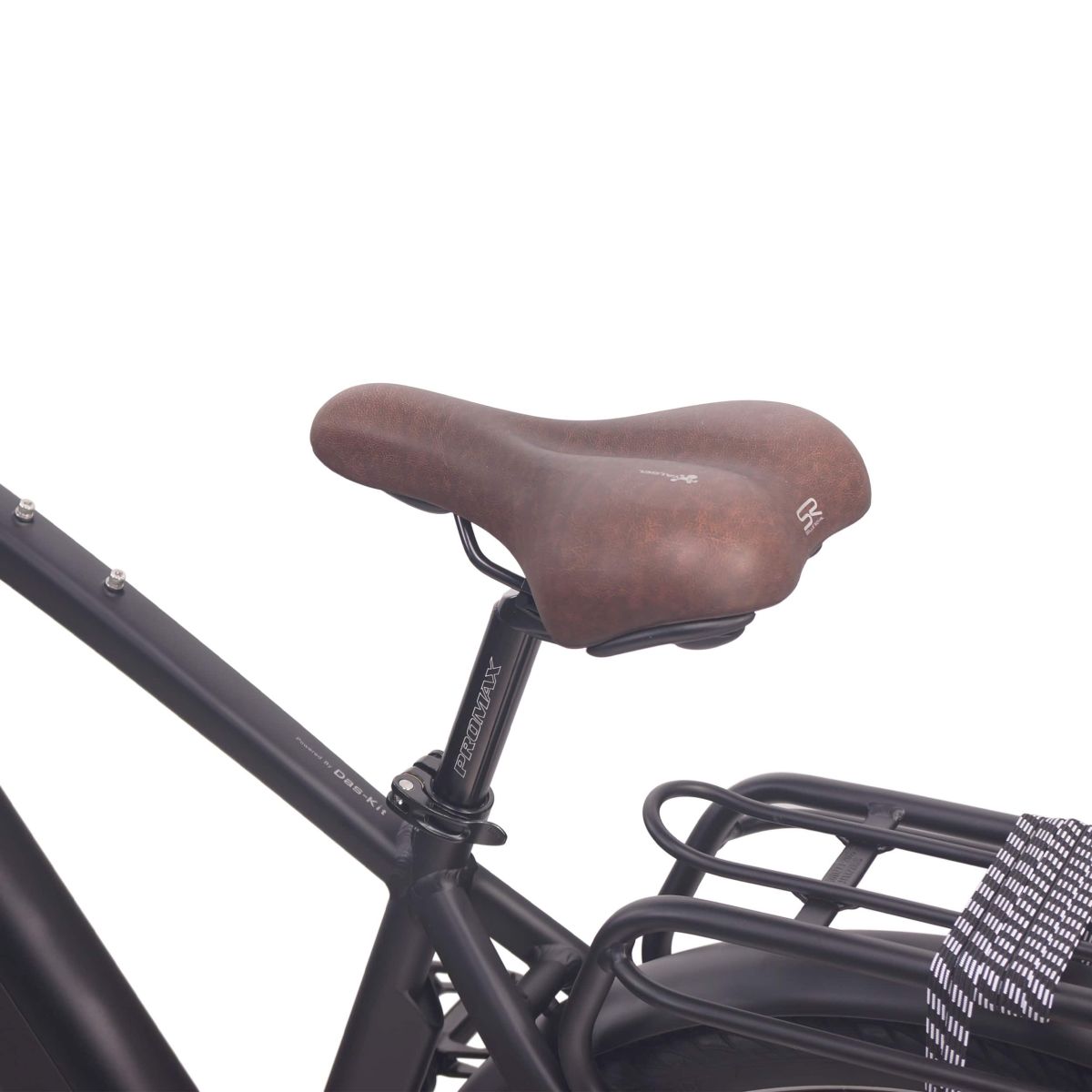

Comfortable Saddle

Specifications

  NCM T3 NCM T7
Motor Das-Kit X15 motor, 48V 300W,
500W Peak Power, max speed 32 km/h		 Das-Kit X15 motor, 48V 300W,
500W Peak Power, max speed 32 km/h
Battery Das-Kit, I6, 48V 12Ah, 576Wh DEHAWK, I7, 48V 19Ah, 912Wh
with TAG Technology & USB Port
Display Das-Kit L7, LCD Display Das-Kit C8 Advanced, LCD Display
Charger Das-Kit, 48V 2A Das-Kit, DK483, 48V 3A Fast Charger
Frame

Alu. 6061, 26" x 430mm | 28" x 460mm

 Alu. 6061, 26*430MM
Alu.6061, 28*460MM
Forks Suntour NEX 26 / 28 RST, ANGEL-TNL-26,
with Hydraulic Lock System
Braking System Das-Kit/Tektro Hydraulic Disc Brakes Das-Kit/Tektro Hydraulic Disc Brakes
Gear Selector Shimano Altus, 7 speed Shimano Altus 8 speed
Front Derailleur N/A N/A
Rear derailleur Shimano Altus, 7 speed,  RD-M310 Shimano, Acera, RD-M360
Saddle Selle Royal, Freeway, Brown Selle Royal, Lookin, Black
Tyre CST / Arisun, H-5213E,
26" x 1.95 | 28" x 2.0		 CST/Arisun, H-5213E,
26*2.0 | 28*2.0
Handle Grips Velo, Brown Promax
Pedal Wellgo, B087 Wellgo, B087, Black
Range Upto 120 km
(Depending on the road conditions and power setting)		 Up to 180 km
(depending on road conditions and power setting)
Weight E-Bike: 26 / 27 kg
Weight Capacity: 140 kg (driver+bike)		 E-Bike: 28.8 kg
Weight Capacity: 140 kg (driver+bike)



Sizing Chart

cm   A B C D E F
  Stand Over Height Wheel Base Frame Size Min / Max Seat Height Reach Overall Length
T3 26" 170-198 78-103 107 43 85/103 40 173
T3 28" 175-198 84-89 110 46 91/108 39 181





Warranty

  • 1-year warranty on all electronic parts (including battery, motor, controller, display, and lights)
  • 2-year warranty on the bike frame. For more warranty information visit our FAQS.
  • Apart from manufacture defects that could be present, parts that wear due to normal use (such as tires, brake pads, chains, spokes, freewheel, tire puncture etc) are not included in the warranty but may be replaced on a case by case basis within the first 6 months.
  • Our bikes are water resistant but not waterproof. Water damage is not covered under warranty.


About NCM

NCM Electric Bikes, founded in 2014, has quickly become one of the largest pedelec and e-bike brands in Europe with the goal of expanding the market significantly in the near future. NCM is the perfect brand to start your pedelec experience whether you are an avid cyclist or a relative newcomer, we are committed to providing you with a range of high quality. Our innovative technologies ensure that we can differentiate ourselves from the competition and continue to offer the latest technologies. Our goal is to help improve the environment through a friendly riding experience and the promotion of a fun and active lifestyle.


Notes

In order to ensure our high quality standard, our electric bicycles are subjected to a functional test at the factory. This can lead to dust deposits on the tyres and the seat post. Our e-bikes are only delivered pre-assembled, a final fine adjustment and inspection by the buyer or a third party is necessary (costs incurred for this cannot be covered). Before riding, please check all screws for strength and carry out a fine adjustment of the gears and brakes. Check the tyre pressure. Depending on the bicycle model, the final assembly and inspection of the components should take between 60 and 90 minutes.

IMPORTANT NOTICE:
The laws around the use of scooters/e-bikes on public lands, roads and areas vary from state to state.
We recommend you always check your local council and road traffic laws prior to using a scooter/e-bike to ensure you are aware of any restrictions that may affect the use of motorised vehicles.
Always use appropriate protective riding equipment such as an approved helmet and suitable clothing.

In the box

  • 1 x T3 E-bike
  • 1 x DC483DE 48v charger
  • 1 x tool kit


(P-VENICE-T3)

SKU P-VENICE-T3
Shipping Weight 34.0000kg
Shipping Width 0.230m
Shipping Height 1.010m
Shipping Length 1.840m
Shipping Cubic 0.427432000m3
